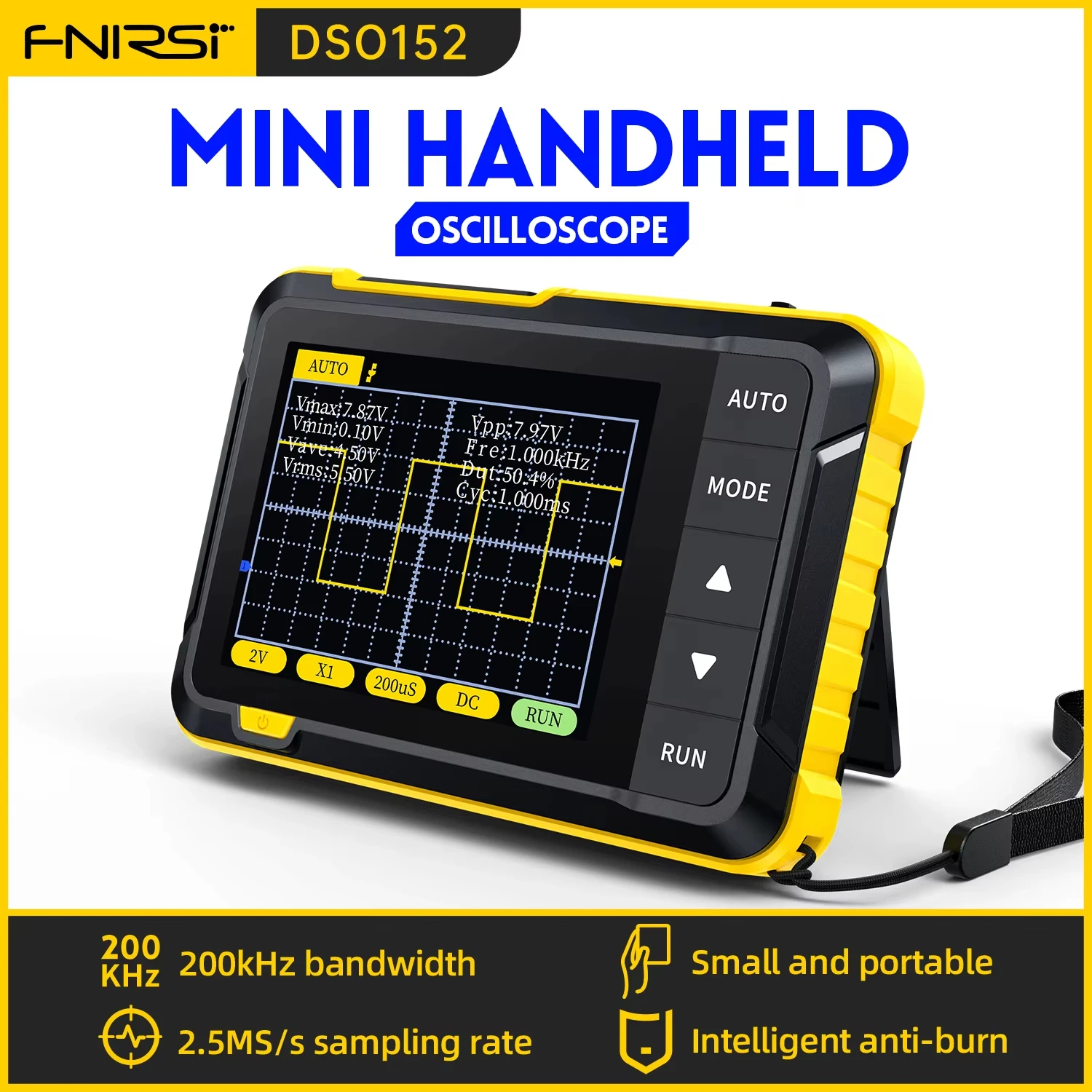

FNIRSI DSO152 Portable Mini Handled Digital Oscilloscope Auto 200KHz Bandwidth 2.5MSa/s Sampling Rate Electronics Repair Tools
“DSO152” is a highly practical and cost-effective handheld oscilloscope launched by our company, which is aimed at the maintenance industry and the research education industry.
The oscilloscope has a real-time sampling rate of 2.5MS/s, abandwidth of 200KHz, and complete trigger functions (single, normal, and automatic).
It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure voltages up to ±400V.
Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments.
Equipped with a 2.8-inch 320*240 resolution high-definition LCD screen.

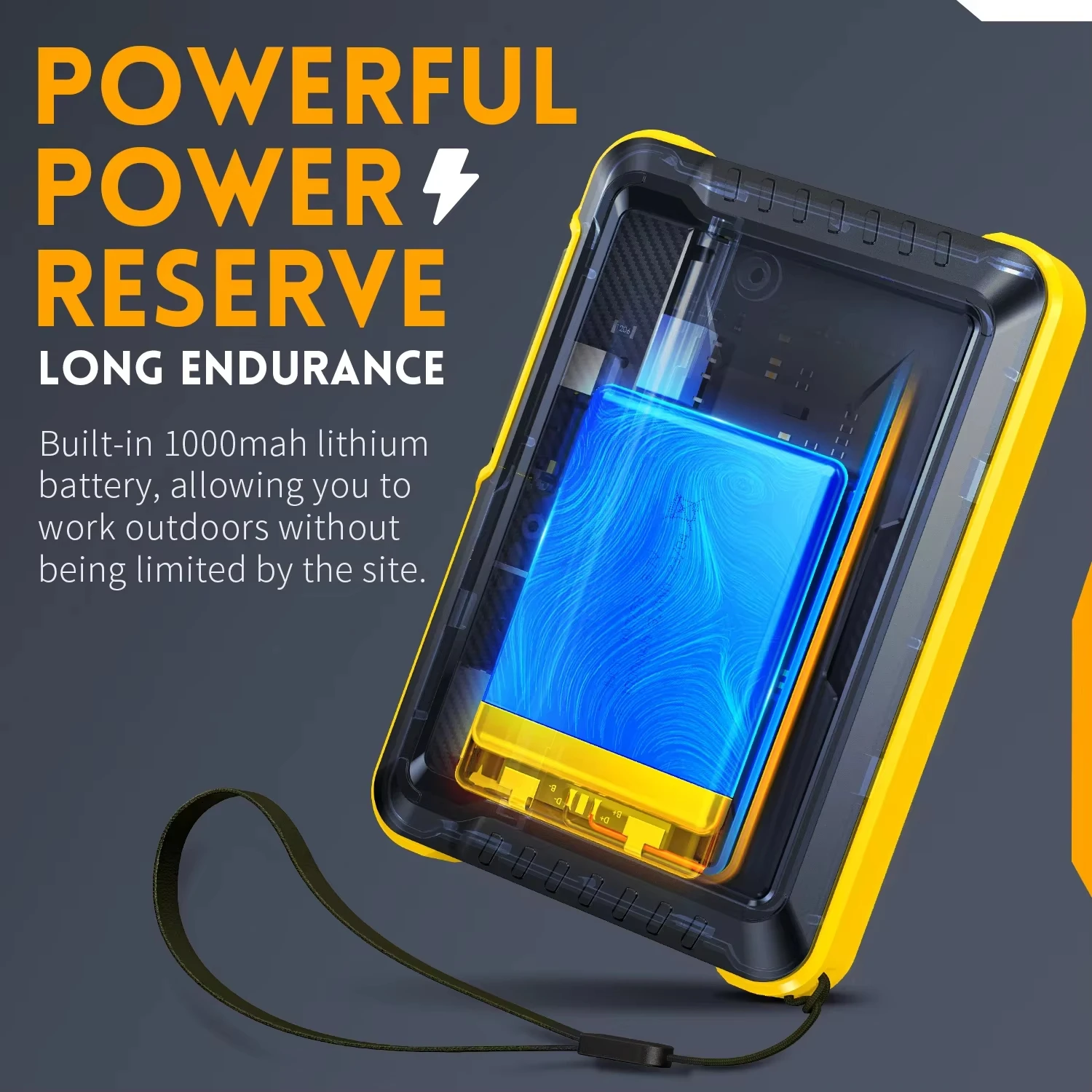

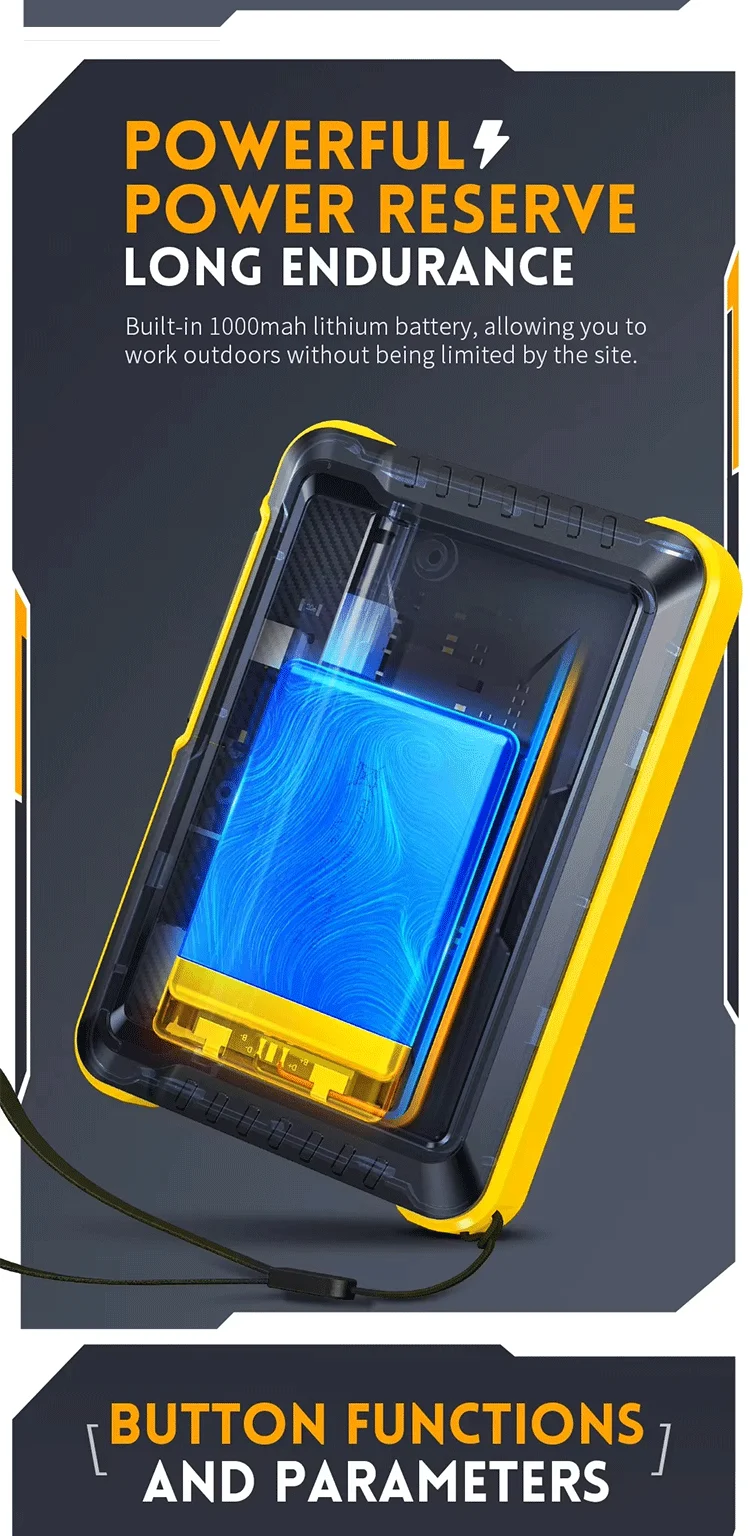

Built-in 1000mAh high-quality lithium battery, can be used continuously for about 4 hours after fully charged.
Sampling rate：2.5MS/s
Bandwidth：200K
Vertical sensitivity：10mV/Div-20V/Div(Progress according to the 1-2-5 way)
Time base range：10μs/Div-50s/Div(Progress according to the 1-2-5 way)
Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method：Auto/Normal/Single
Coupling method：AC/DC
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Square wave calibration：Frequency: 1K Duty cycle: 50%
Size：99×68.3×19.5mm
Weight：100g
NO.1(Standard)
Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1
NO.2(Option)
Host device *1
P6100 High Voltage Probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1
