- Hign-concerned Chemical: None
- IS Battery Demountable: Yes
- Model Number: DSO153
- Certification: CE
- Origin: Mainland China
- Brand Name: FNIRSI
- Display resolution: 320*240 Pixels
- DIY Supplies: ELECTRICAL
- Band Width: 1MHz
- Digital Channels: 1
- FNIRSI Model: DSO153
- Vertical sensitivity: 10mV/Div-20V/Div
- Time base range: 500ns/Div-20s/Div
- Voltage range: X1:40V (Vpp:80V),X10: 400V (Vpp :800V)
- Trigger method: Auto/Normal/Single
- Coupling method: AC/DC
- Frequency: 0-10KHz
- Duty cycle: 0-100%
- Amplitude: 0.1-3.3V
- Waveforms: 14 kinds
- Display: 2.8 inches/PPI:320*240
- USB charging: 5V/1A
- Lithium battery capacity: 1000mAh
- Size: 99×68.3×19.5mm
- Weight: 100g
DSO-153 is a highly practical and cost-effective handheld oscilloscope launched by our company, targeting the maintenance industry and development education industry.

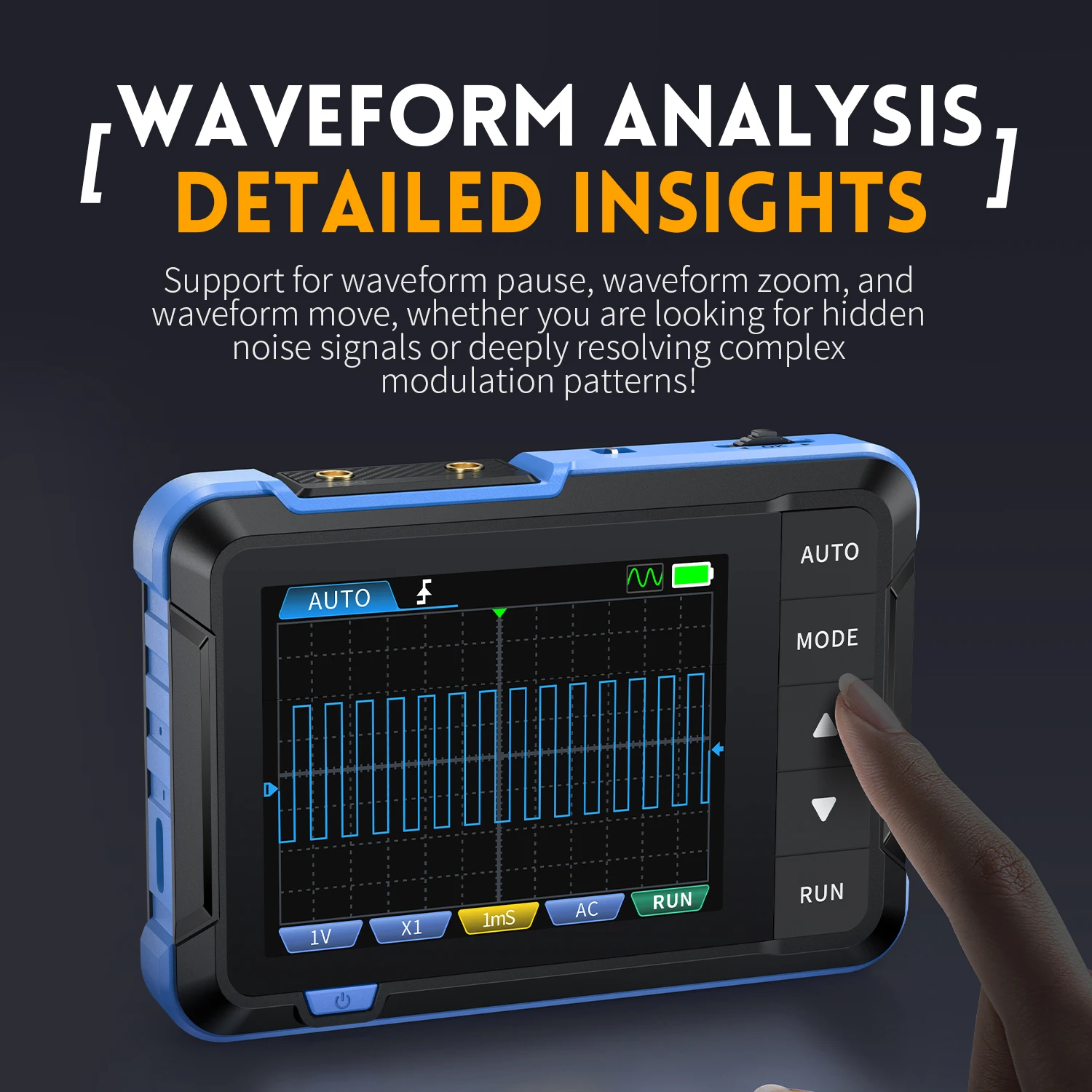

This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.
In addition, it also comes with multiple functions signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
* Mini Oscilloscope *
Sampling rate：5MSa/s
Bandwidth：1MHz
Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way
Time base range：500ns/Div-20s/Div（Progress according to the 1-2-5 way
Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method：Auto / Normal / Single
Coupling method：AC/DC
* Signal generator *
Frequency：0-10KHz
Duty cycle0-100% (rectangular and sawtooth
waves)
Amplitude0.1-3.3V
WaveformsSine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Size：99×68.3×19.5mm
Weight：100g
NO.1(Standard)
Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User manual *1
Packaging color box *1
NO.2(Option)
Host device *1
P6100 high vltage probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User manual *1
Packaging color box *1
