LASER TREE 80W Laser Module 450nm Laser Head Blue Laser for Cnc Laser Engraving Cutting Machine WoodWorking DIY Tools

LT-40W-AA(5W):

1. Optical power is 5W (±0.5W), electrical power is 12V (1.5A-2A).

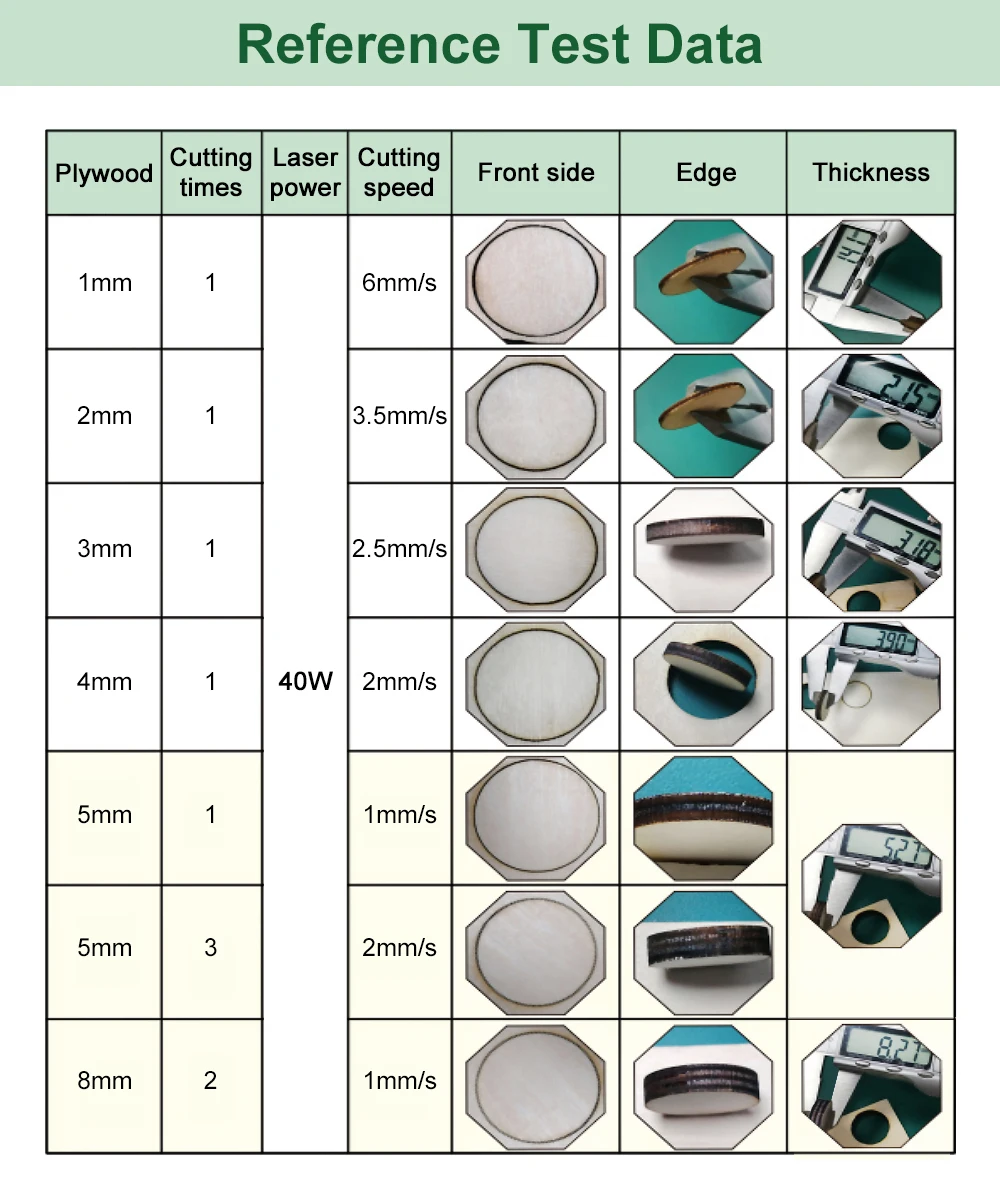

2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.

3. High precision engraving resolution 0.08mm.

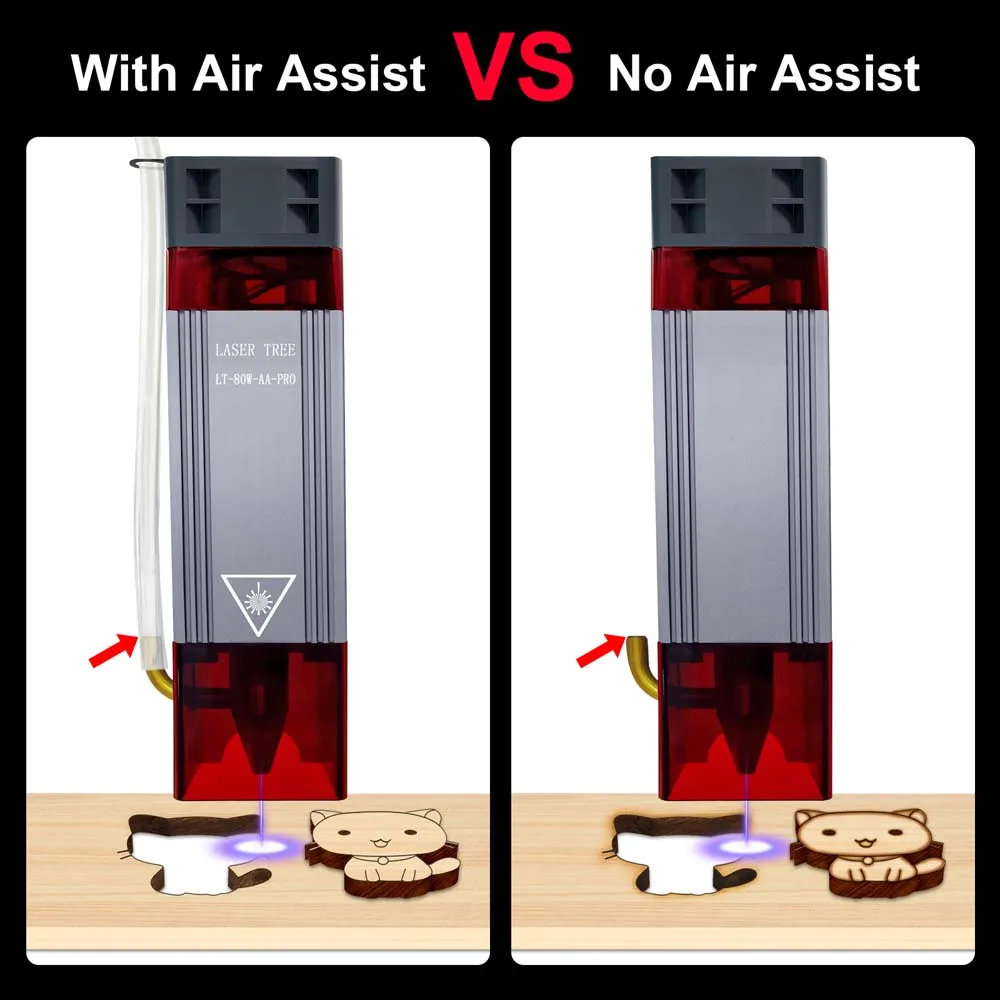

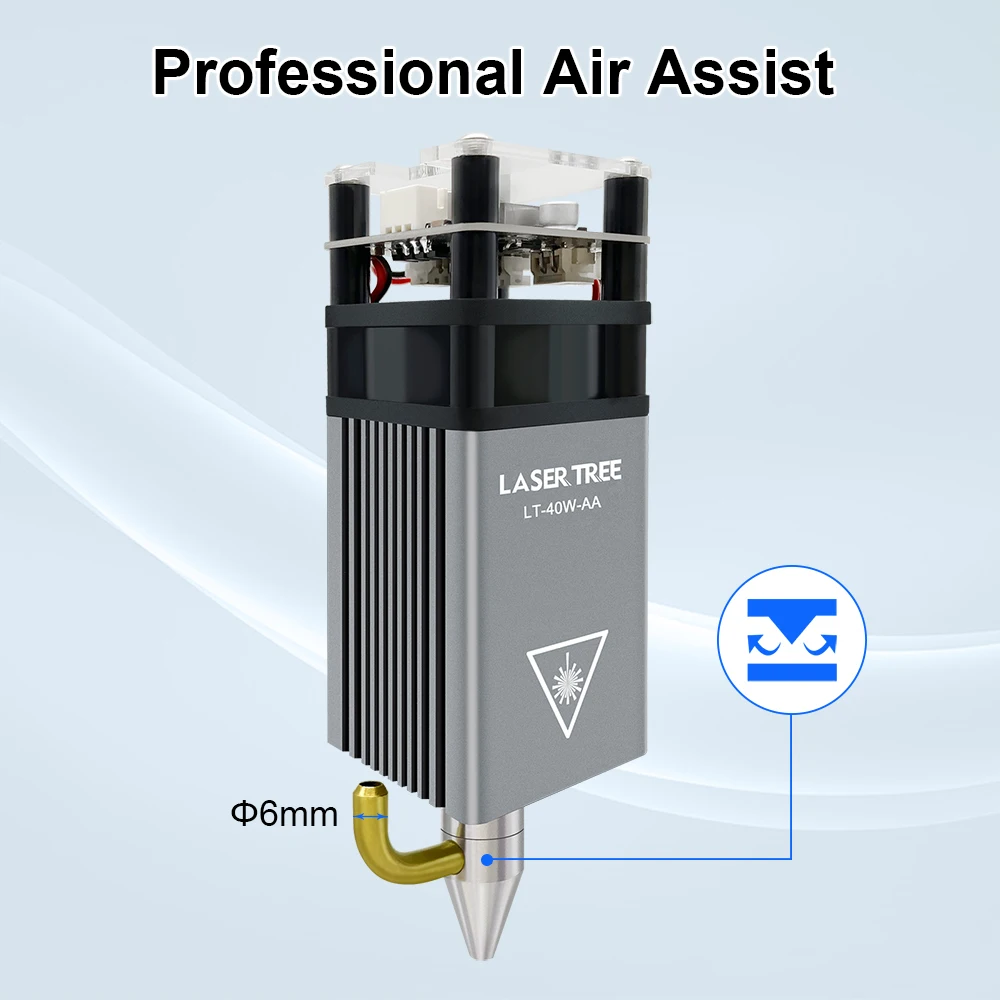

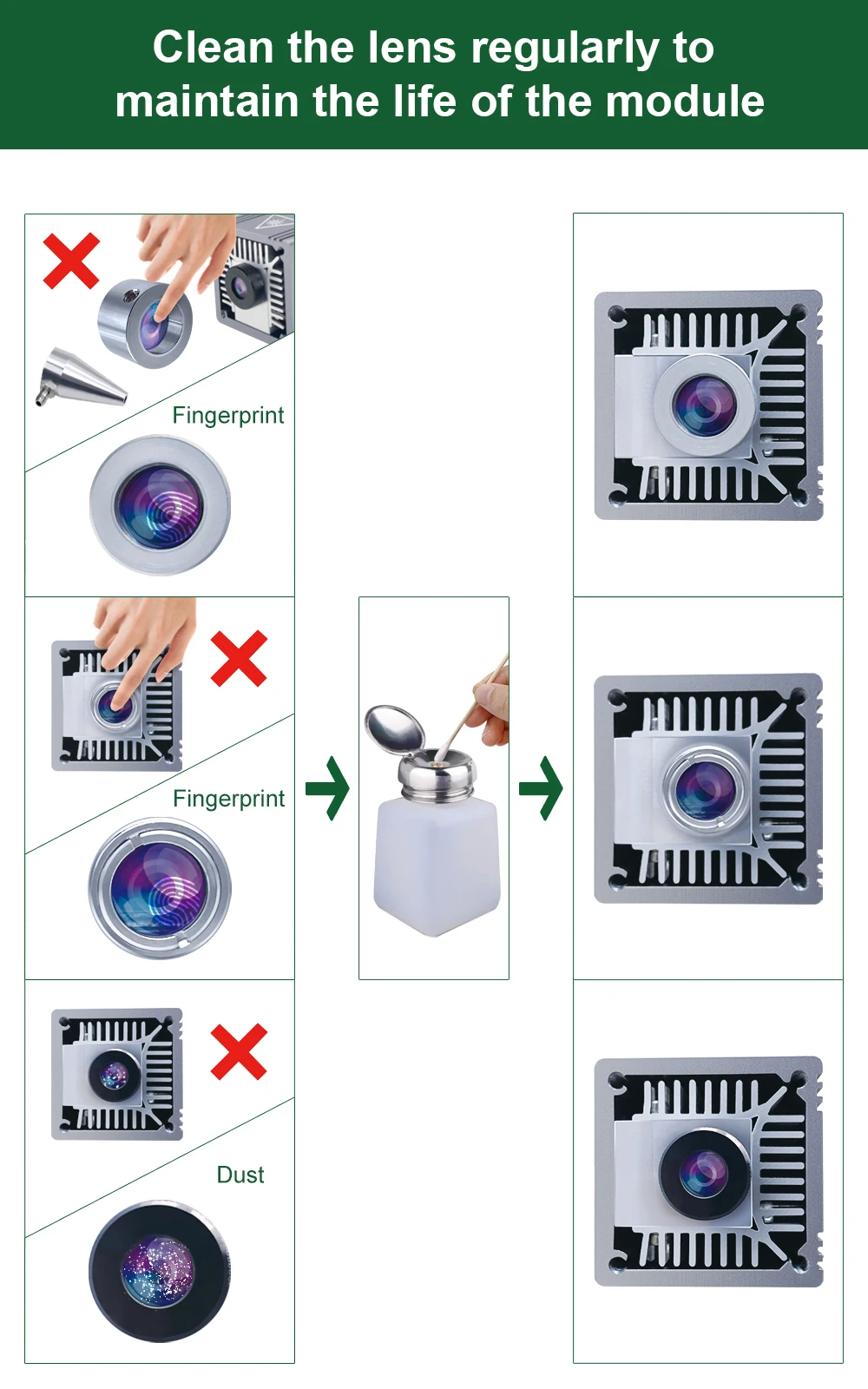

4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.

5. Upgraded Magnetic eye protective cover, easy to remove and install.

Specification:

Material: Aluminum alloy
Effect Output Power: 40W

Output Optical Power: 5W(±0.5W)

Electric Power: 12V 1.8A(1.5A-2A)

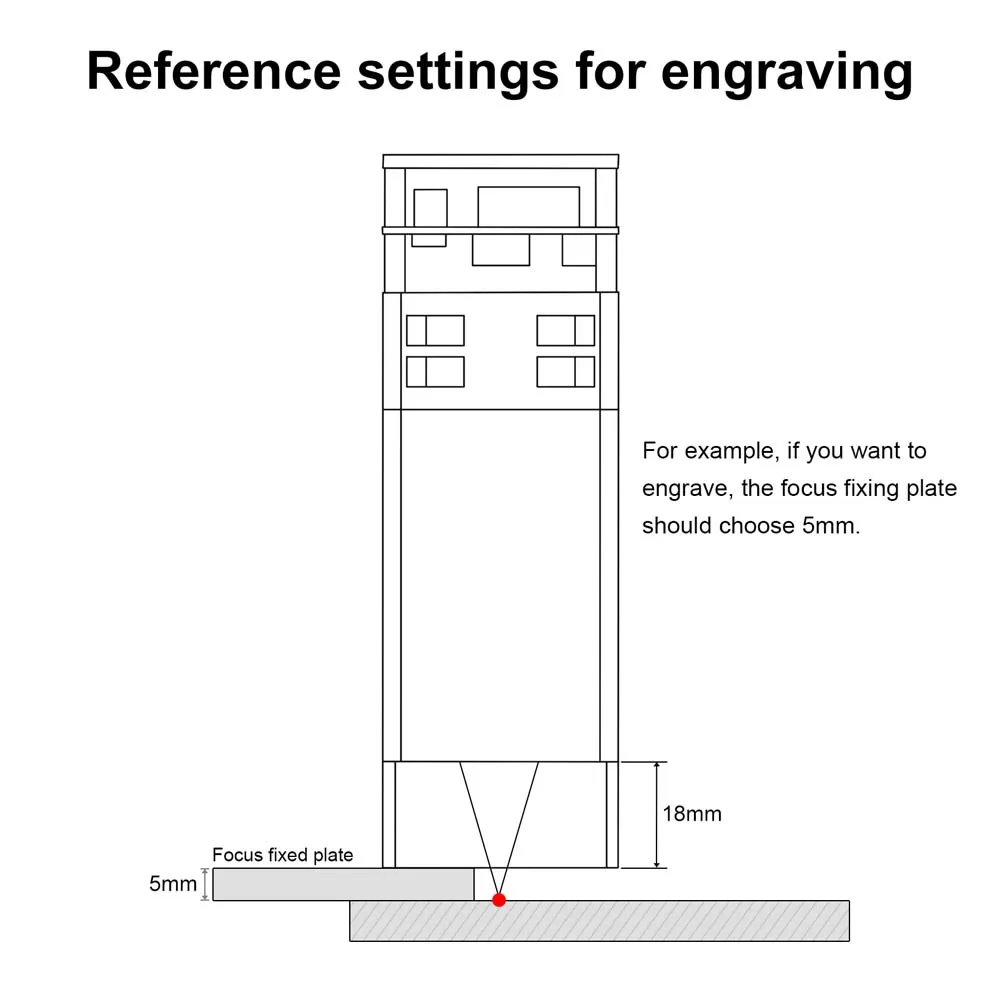

Focus Length: 23mm

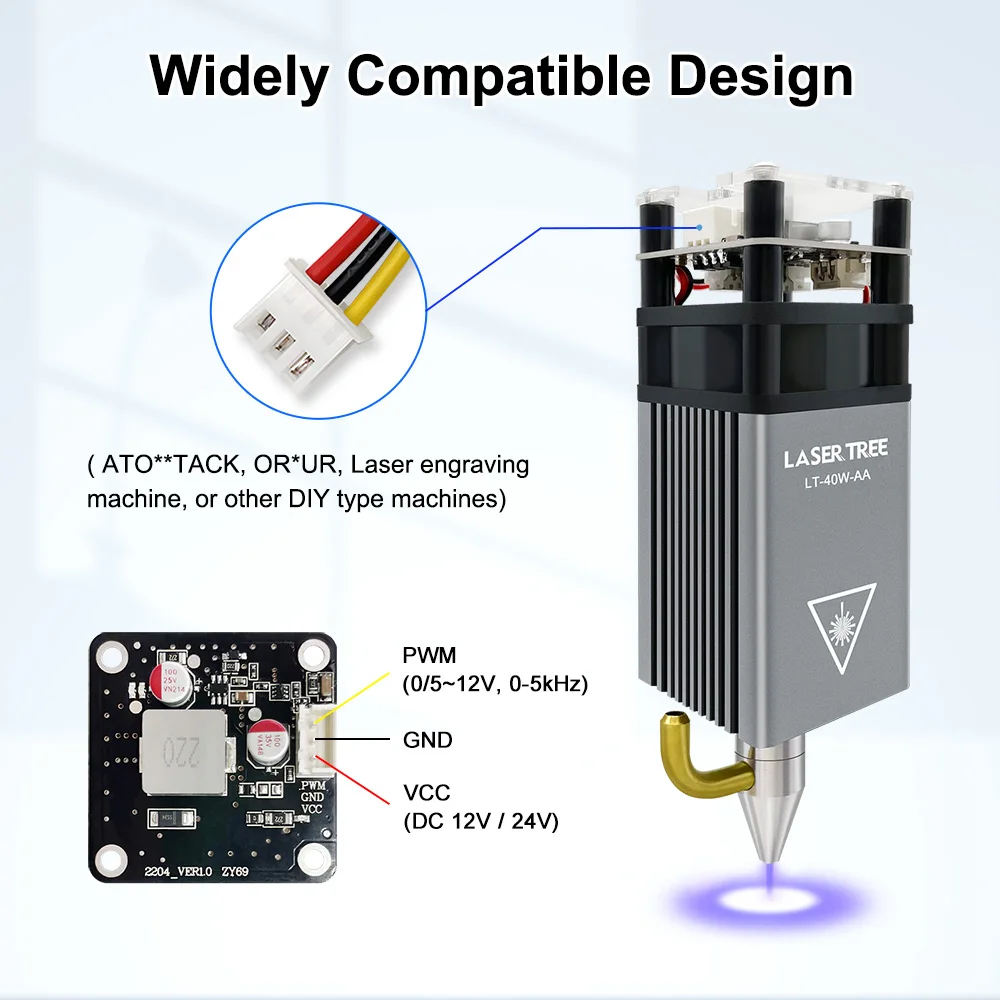

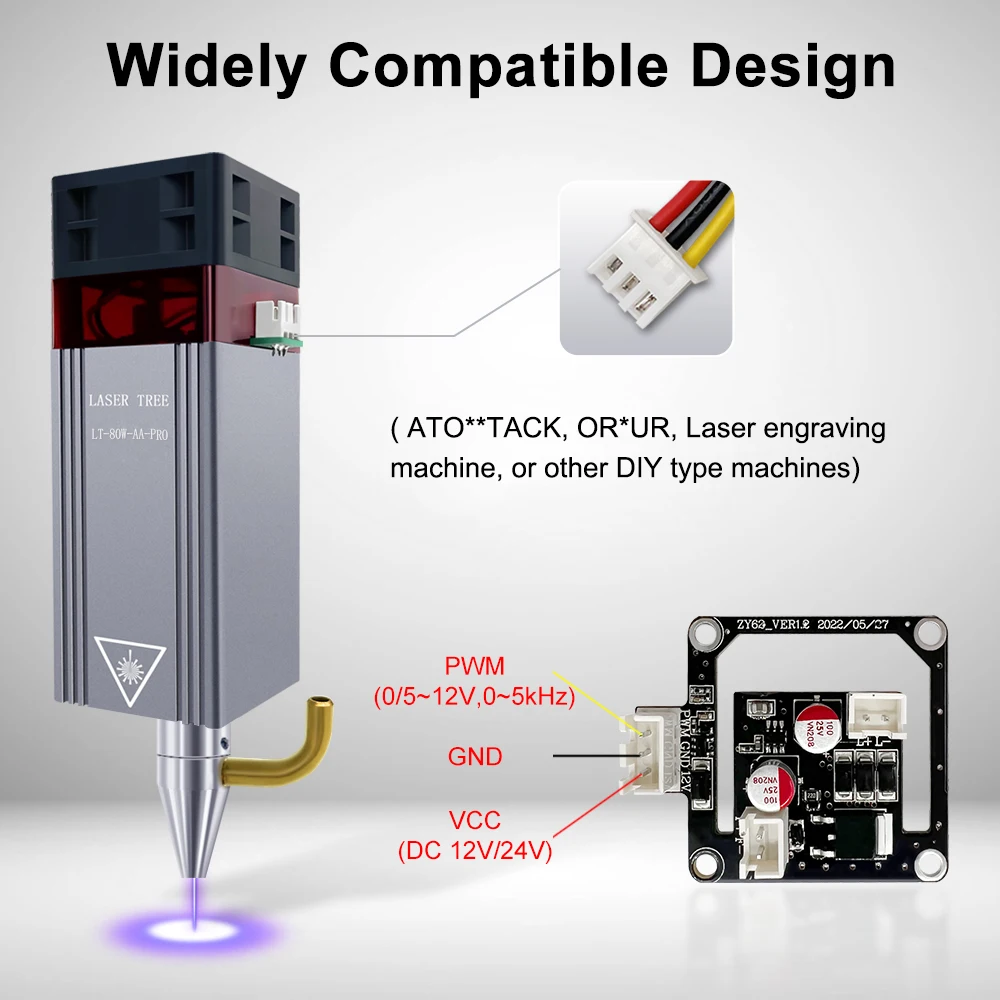

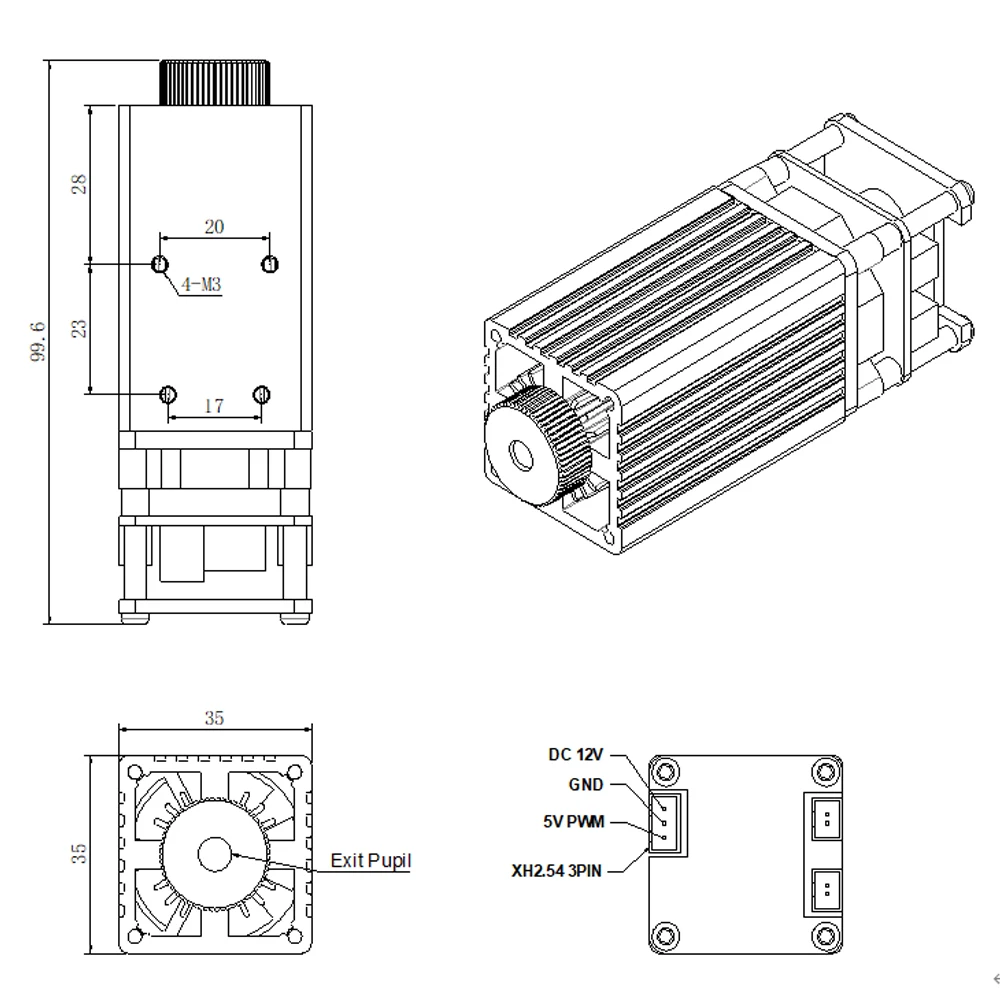

Interface: XH2.54-3P socket

Power Adjustable: Support 5V PWM modulation

Function: Engraving/Cutting

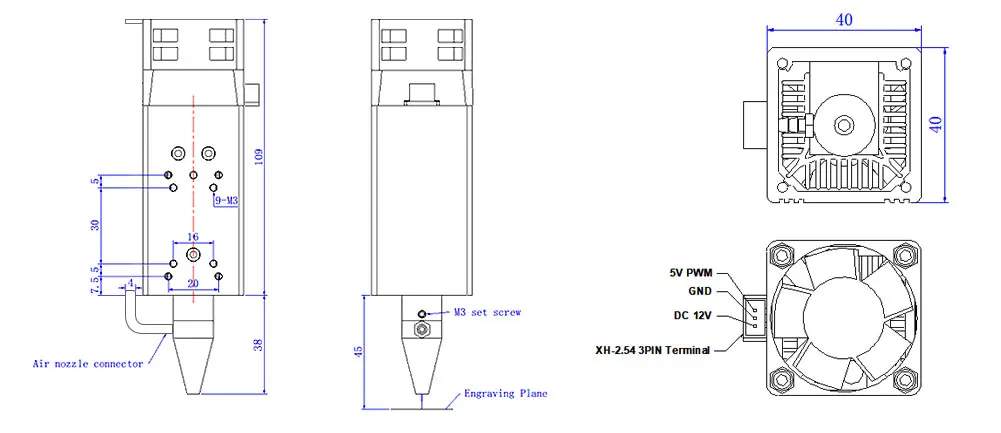

Module Size: 40*40*121mm

Module Weight: 240g

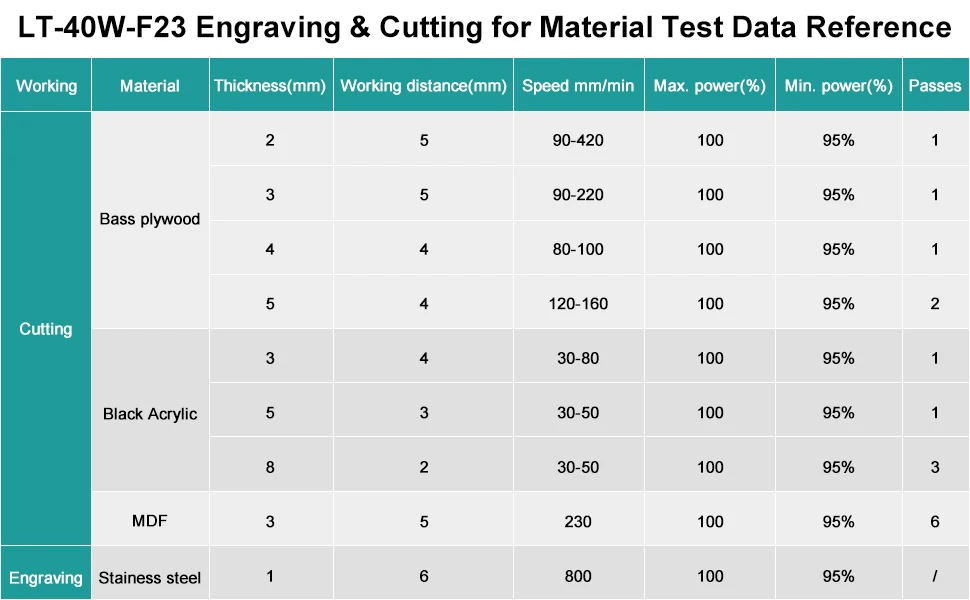

LT-40W-F23(5W):

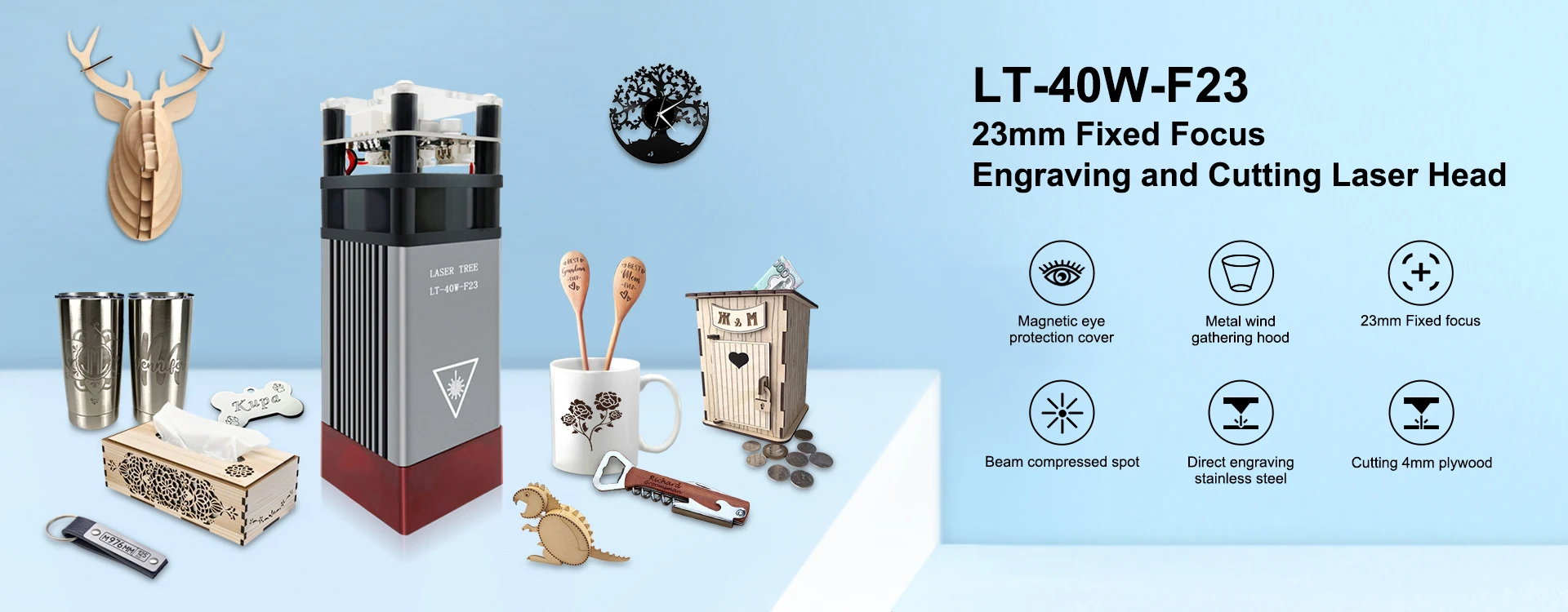

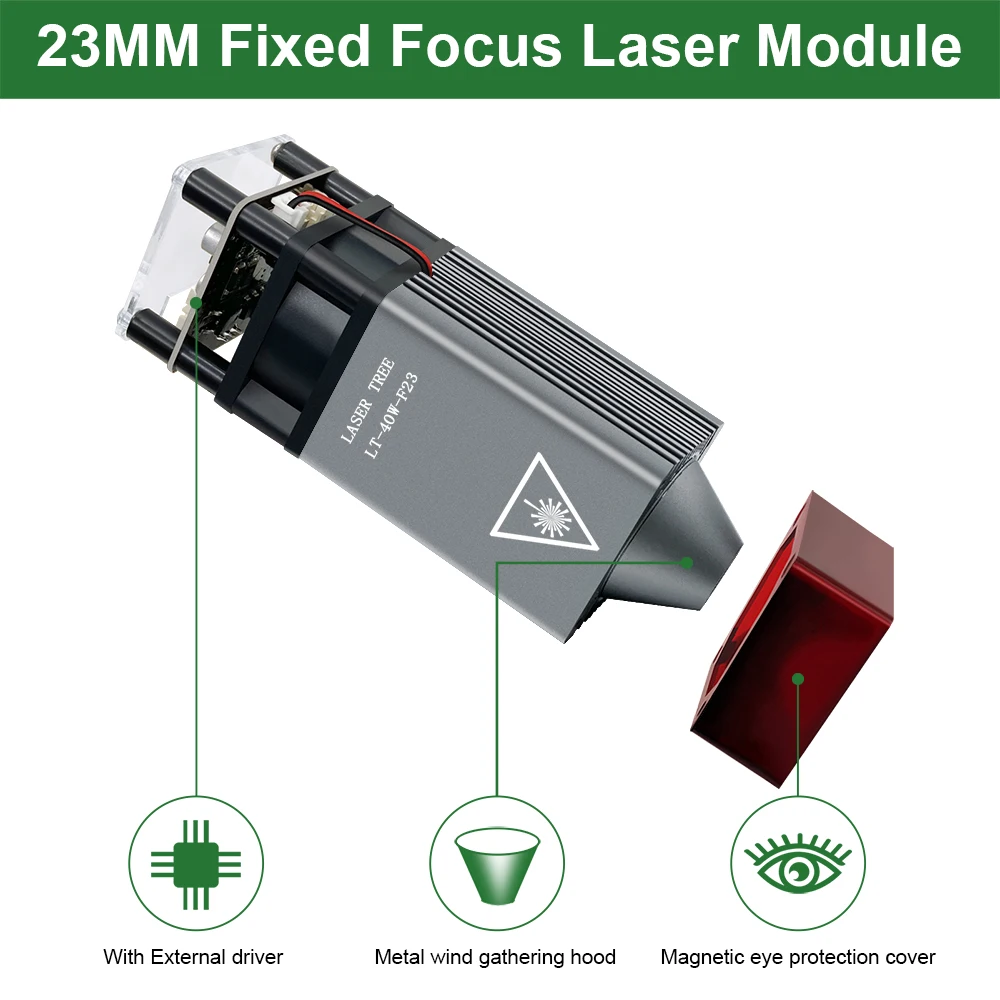

40W Fixed Focus 23mm Laser Engraving HeadBy LASER TREE

Product Description
Upgraded Laser Module, LASER TREE 23mm Fixed Focus Balance Engraving and Cutting Head, Laser Engraver Module 5W Optical Power with Metal Wind Gathering Hood, Suitable for Laser Engraver Machine

Product Features:
1.Engraving Mirror Stainless Steel, no need to Paint Black.

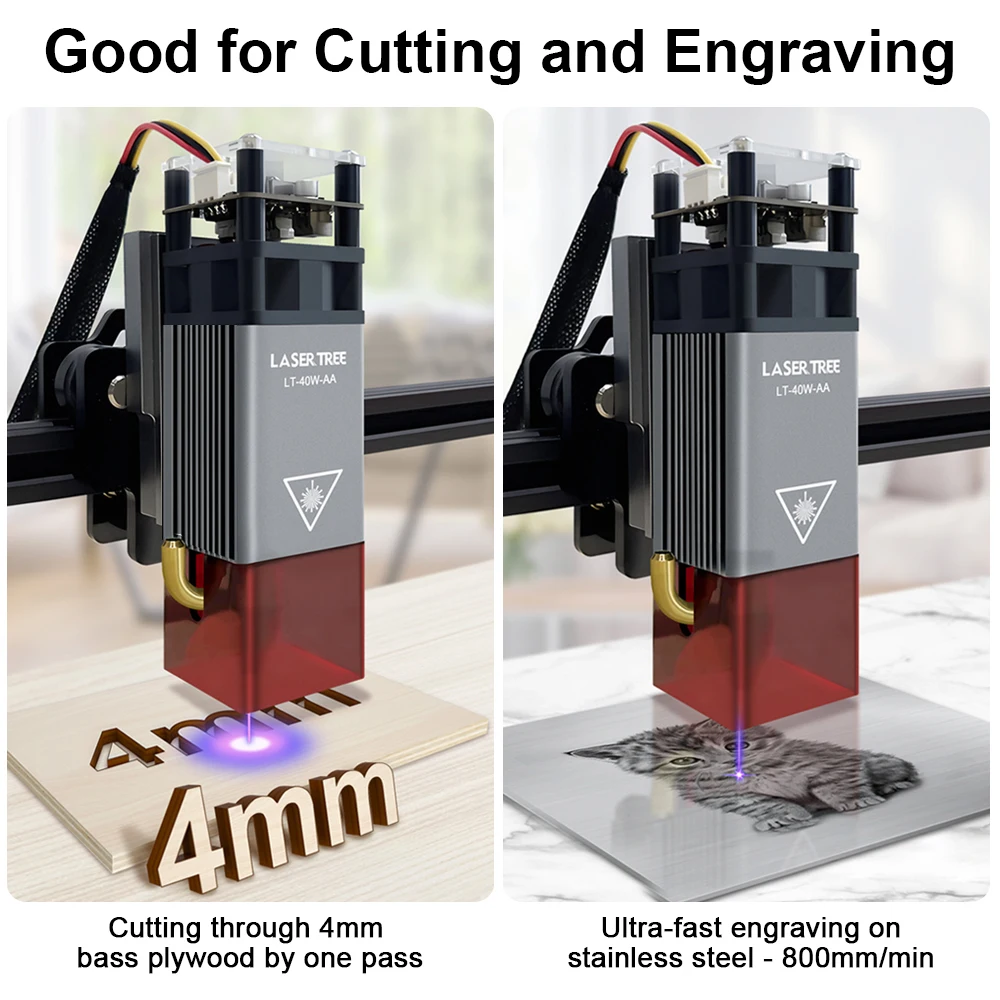

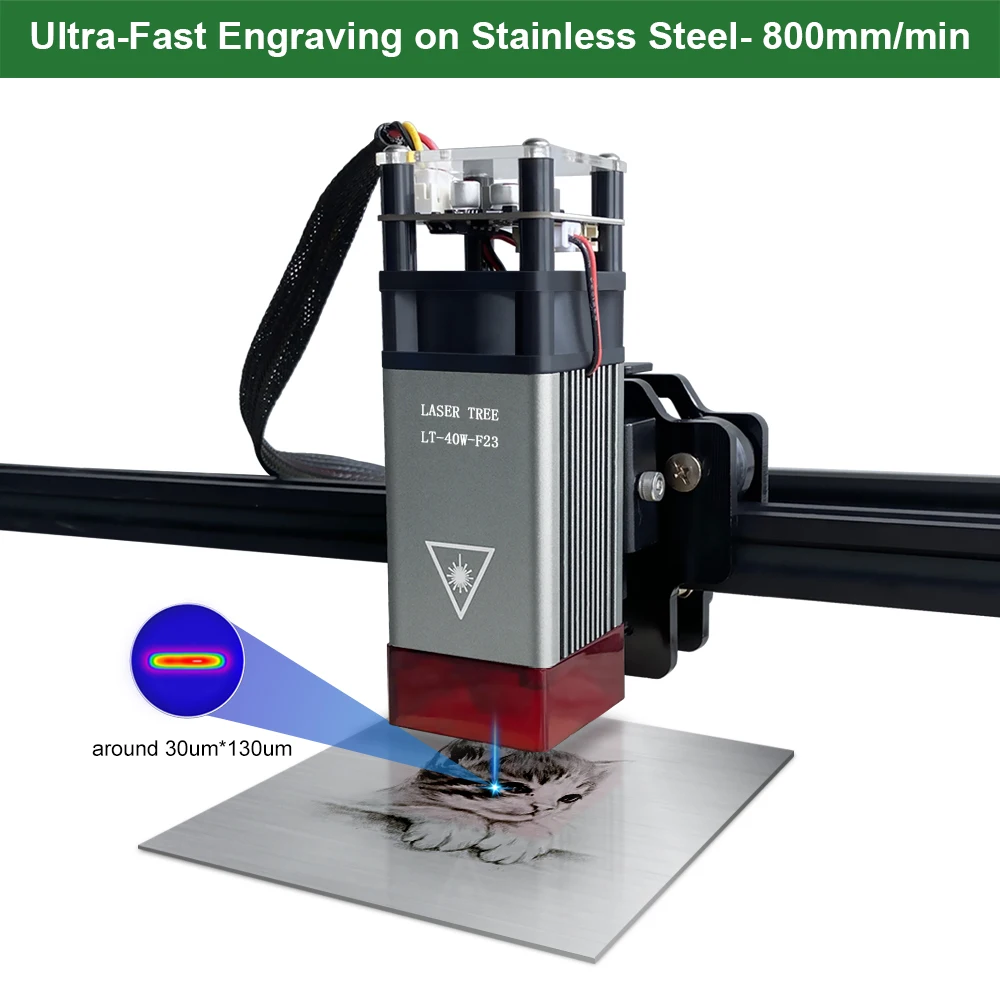

2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.

3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.

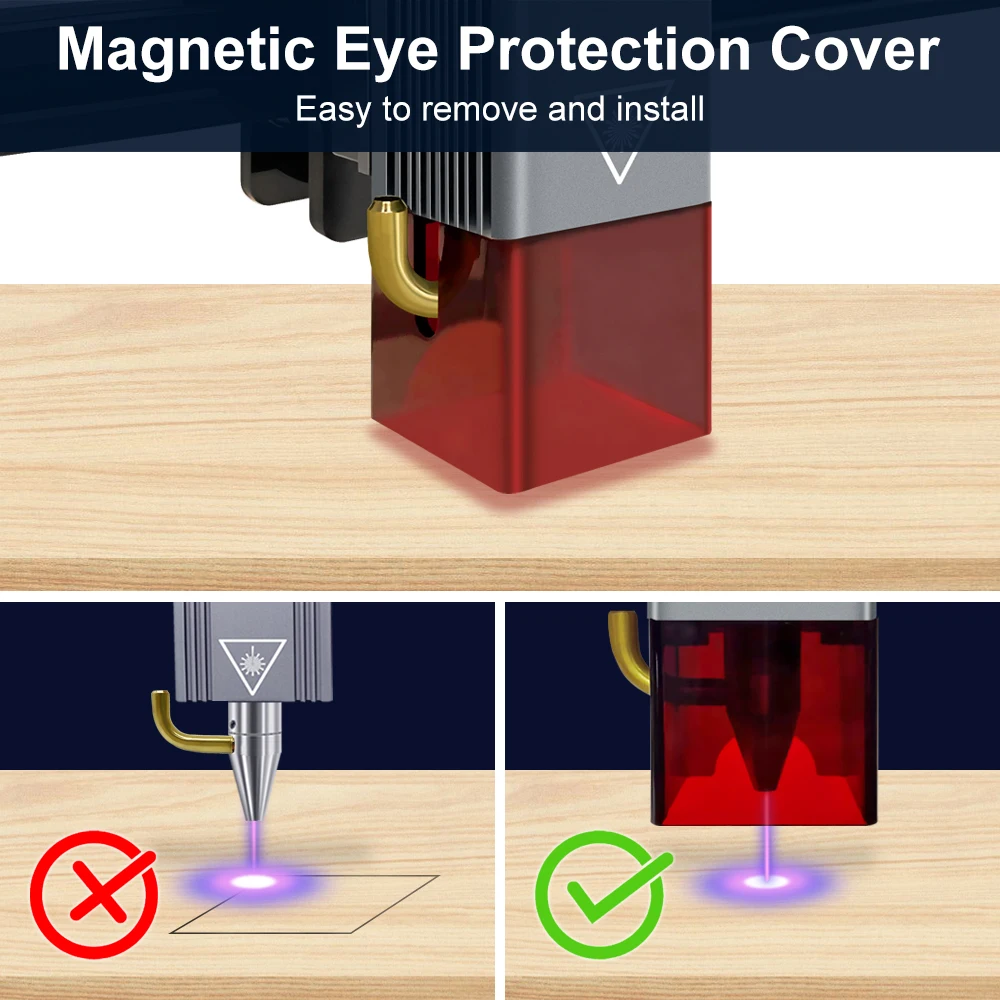

4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.

5.Metal cutting air outlet: Which does not generate heat and can resist flames.

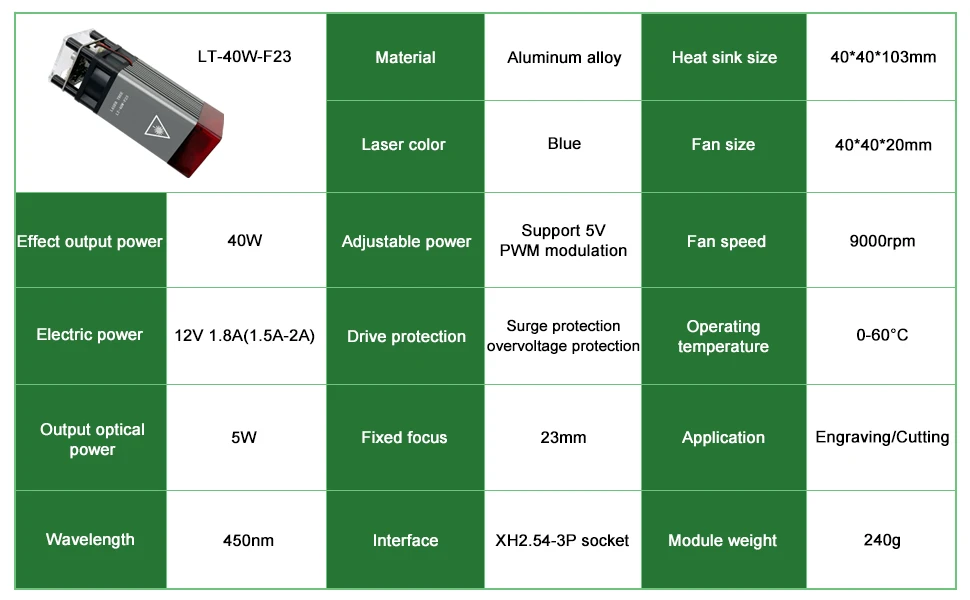

Specification:Material: Aluminum alloy

Effect Output Power: 40W

Output Optical Power: 5W

Electric Power: 12V 1.8A(1.5A-2A)

Focus Length: 23mm

Interface: XH2.54-3P socket

Power Adjustable: Support 5V PWM modulation

Function: Engraving/Cutting

Module Size: 40*40*121mm

Module Weight: 240g

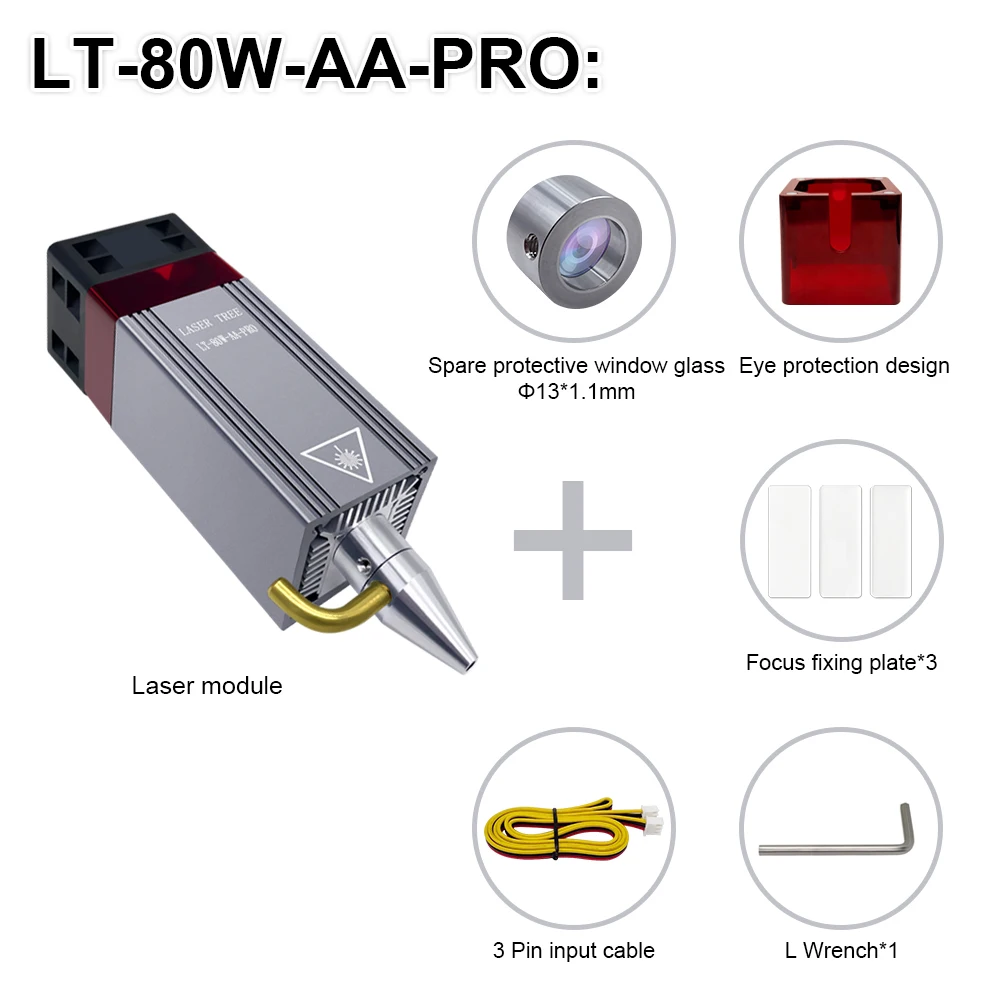

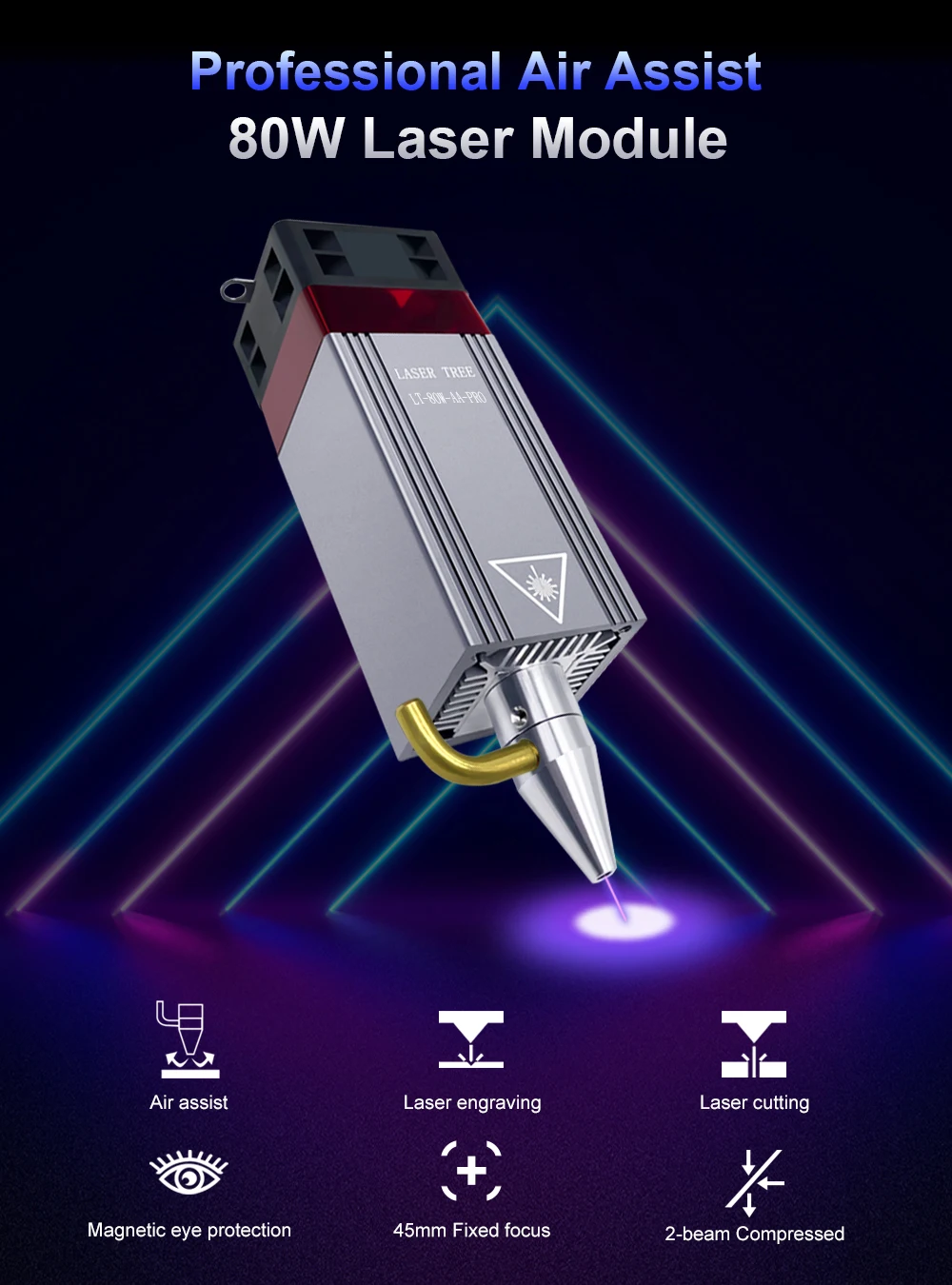

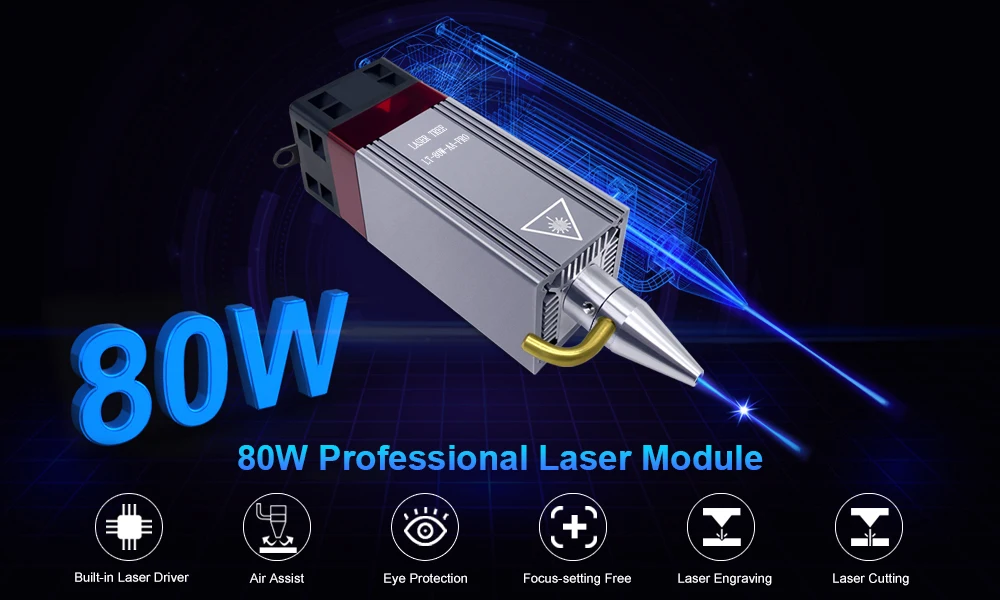

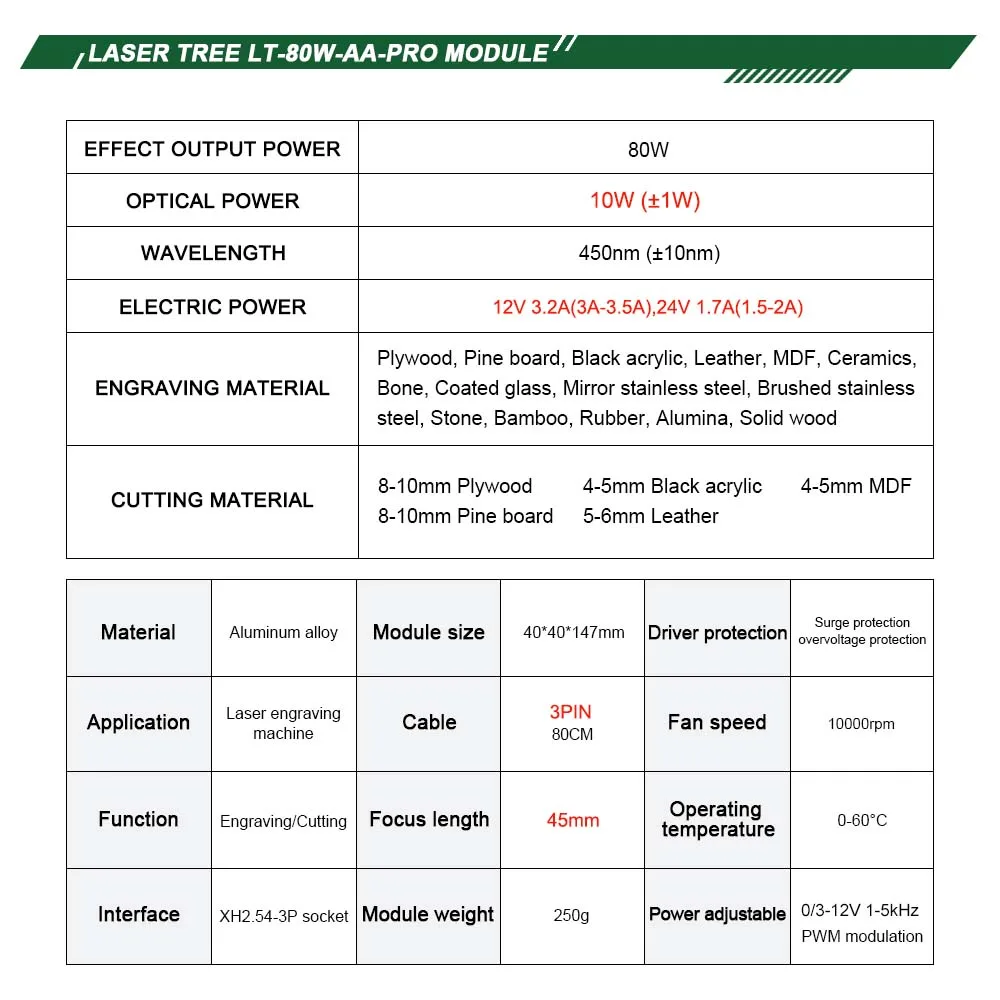

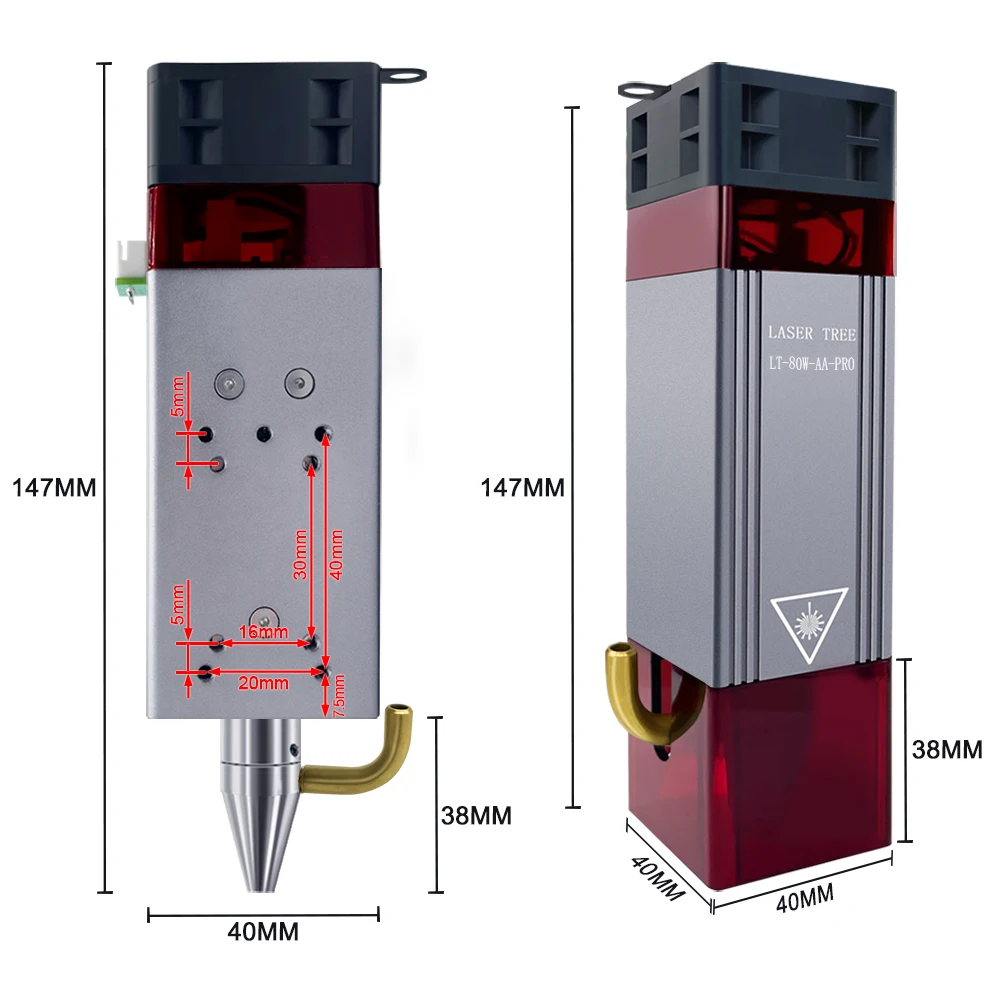

LT-80W-AA-PRO(10W):

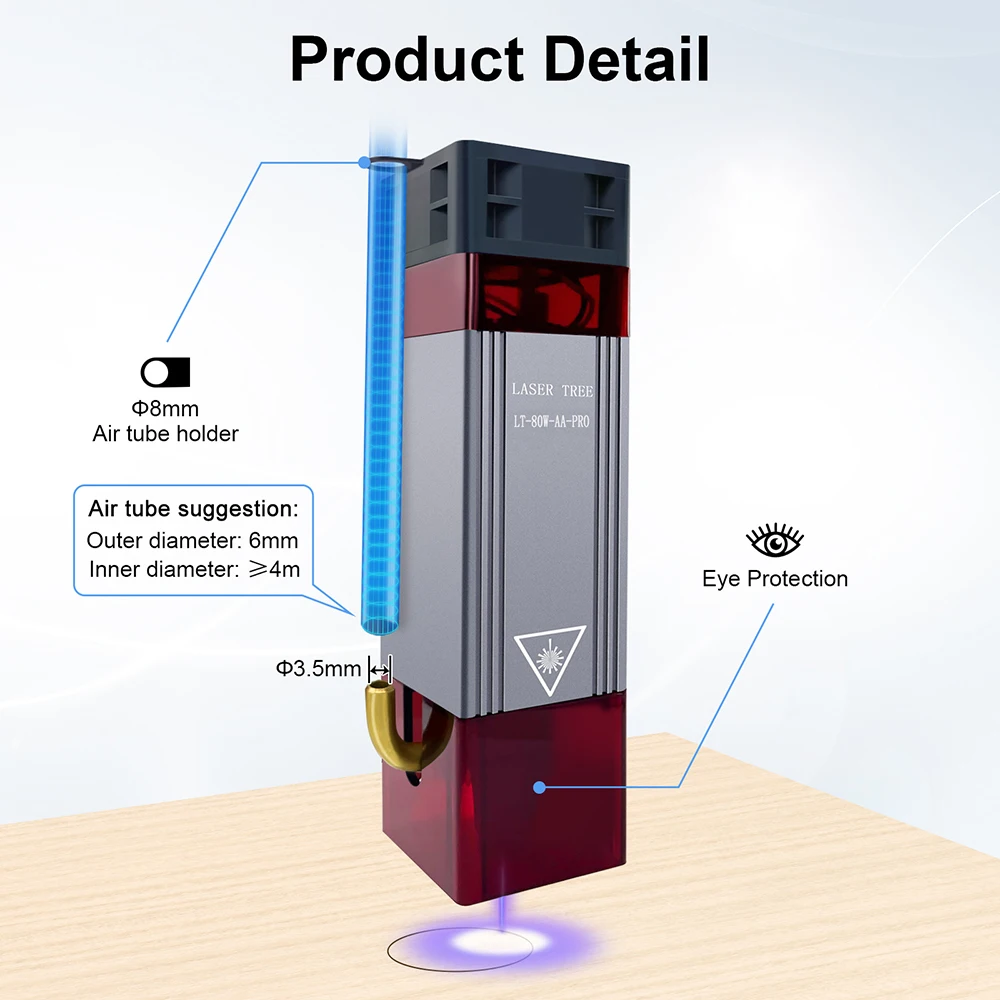

1. Powerful Air Assist NozzleThe laser head is equipped with a specially designed air-assisted nozzle.Pro has an upgraded nozzle compared to the previous AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.NOTE: To take full advantage of the air assist feature, it is recommended that you use it together with the air pump.

2. Magnetic protective coverEquipped with a removable magnetic protective cover. Whether it is engraving or cutting, you can use this protective cover to filter blue light, you can work without laser goggles, safe and convenient.

3. High Power Laser Module2-Beam compression technology, 10W optical power laser module

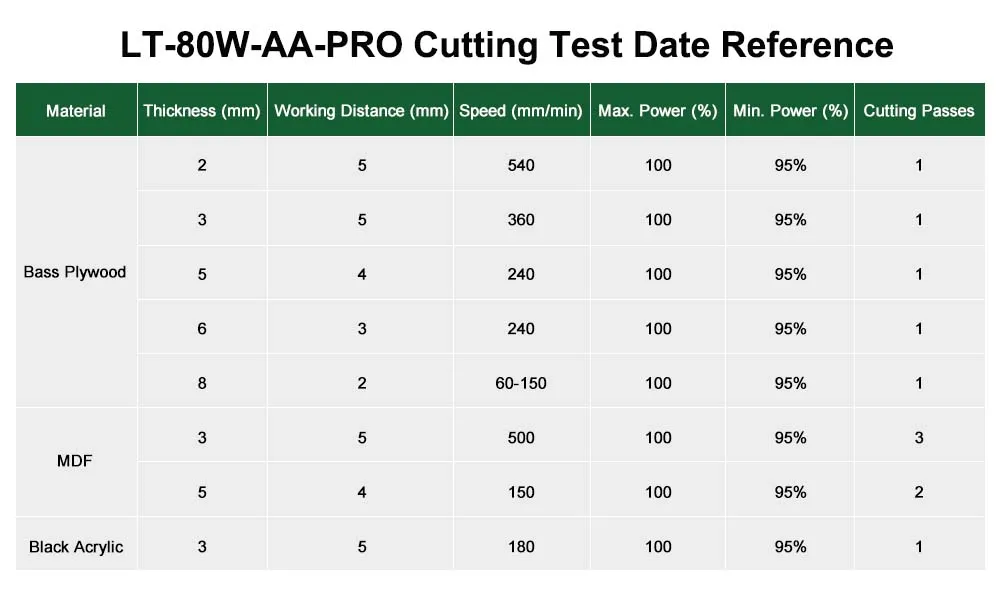

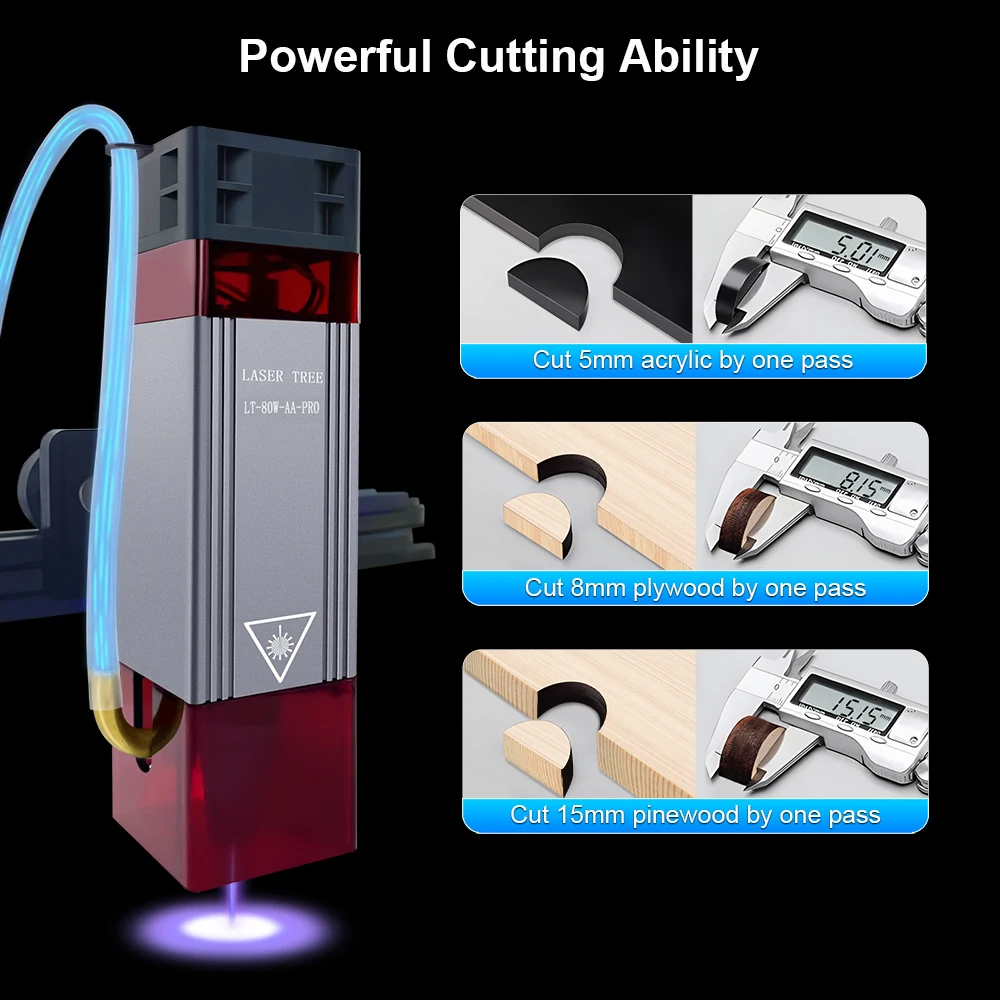

4. Powerful Cutting AbilityCut 8mm bass plywood: 120mm/min,100% power,by one pass
Cut 5mm black acrylic: 50mm/min,100% power,by one pass
Cut 5mm MDF: 150mm/min,100% power,by 2 passes

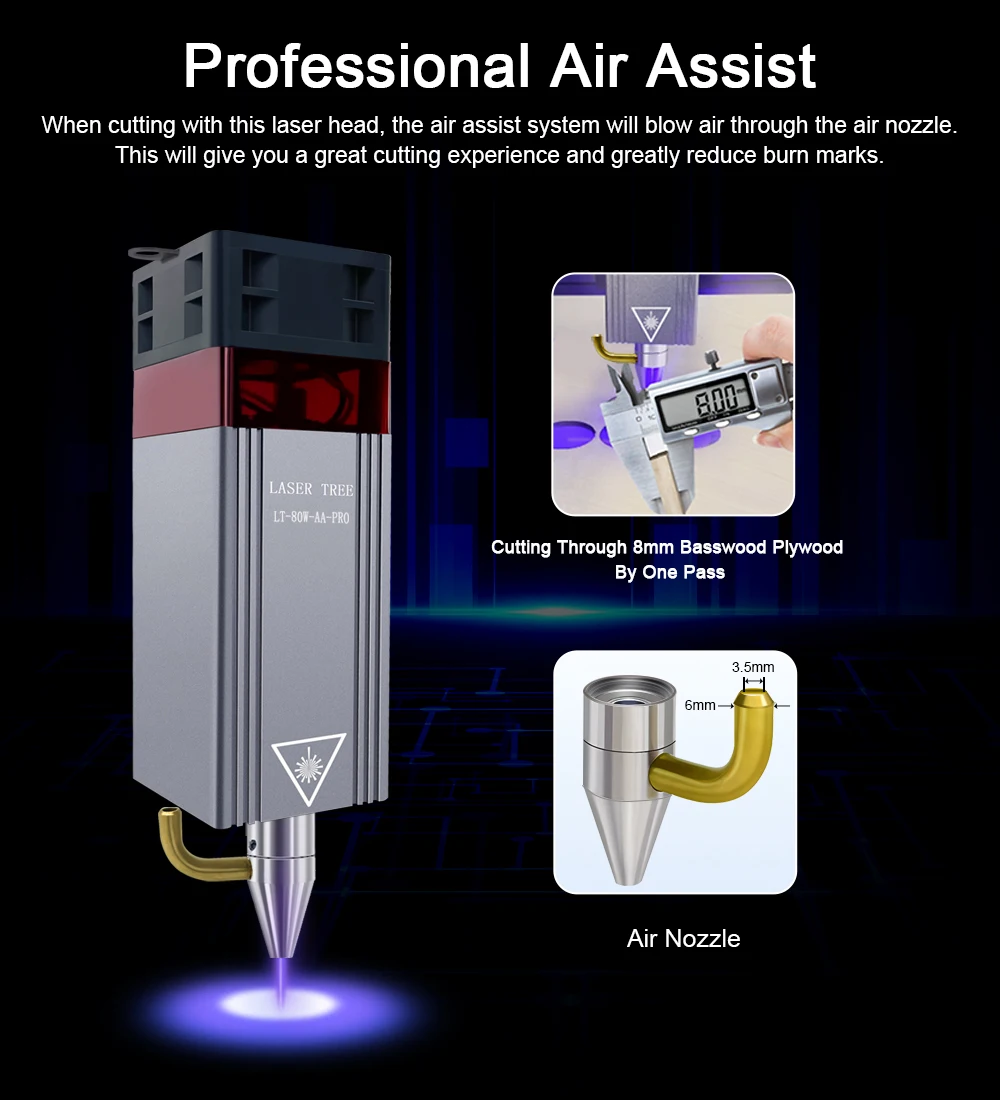

5. Professional Air AssistBlowing through the air nozzle to get clean-cut edges, improve cutting performance

6. Super Fast Engraving SpeedUltra-fast engraving on stainless steel-30mm/s

7. Widely CompatibilitySuitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines
