- Hign-concerned Chemical: None
- Oscilloscope Parts u0026 Accessories Type: Oscilloscope Probe & Accessories
- Brand Name: Micsig
- Origin: Mainland China
- Certification: CE
- Name: High voltage differential probe
- Model number 1: DP700(MDP700)
- Model number 2: DP701(MDP701)
- Model number 3: DP702(MDP702)
- Model number 4: DP1500(MDP1500)
- Model number 5: DP1501(MDP1501)
- Model number 6: DP1502(MDP1502)
- Model number 7: DP3000(MDP3000)
- Model number 8: DP3001(MDP3001)
- Model number 9: DP3002(MDP3002)
Micsig Oscilloscope High Voltage Differential Probe 100MHz-200MHz DP Series DP700/1500/3000/701/1501/3001/702/1502/3002
Emotional tips:
In order to facilitate management, the factory now changes the names of all MDP series to DP series. This change is only a name change, and other changes remain unchanged, which does not affect any function of the product
Bandwidth: 100MHz / 150MHz / 200MHz
Max. Voltage: 700Vpk / 1500Vpk / 3000Vpk
5MHz Bandwidth Limit
When measuring FET switching frequency in most switching power supplies, MDP probe effectively eliminates high-frequency noise.
Quick Zero
Short-circuit the test leads, press Zero button, the probe can be zeroed very fast.
Dual Range Selection
Improves signal-to-noise ratio, meet more test requirements.
BNC Interface
Standard BNC interface, work with any oscilloscope.
USB Power Supply
Powered directly by oscilloscope’s USB port via type-C cable.
Overvoltage Alarm
LED flashes, buzzer “beeps” rapidly, indicating an over-range alert.
Compact & Exquisite
Much smaller than traditional differential probes.

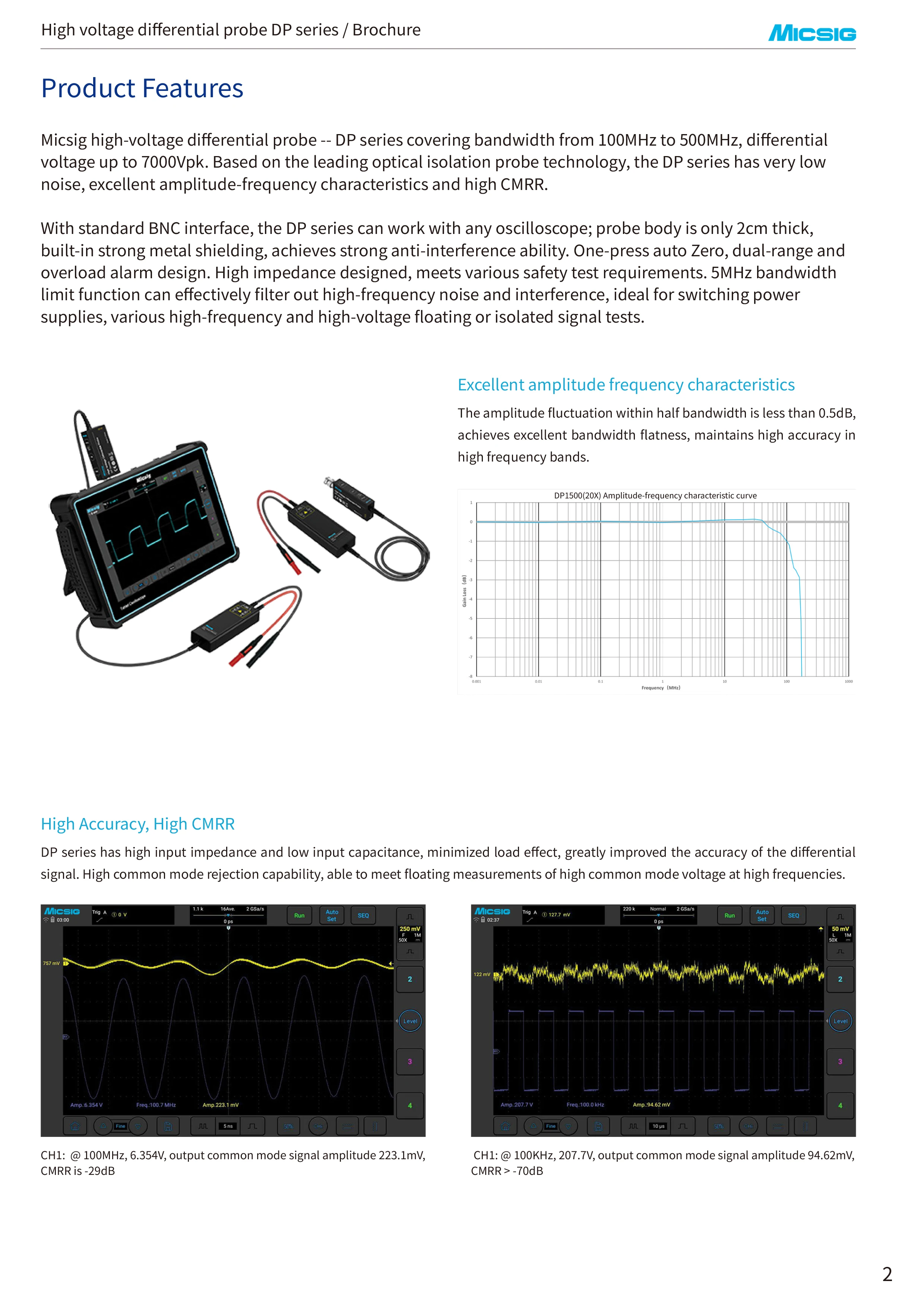

Excellent Bandwidth Flatness
The MDP series probe has excellent bandwidth flatness, amplitude fluctuation less than 0.5dB within its half bandwidth range, even in high frequency bands can also maintain high accuracy.
High Accuracy, High CMRR
High input impedance and low input capacitance, minimized load effect, greatly improved the accuracy of the differential signal. High common mode rejection capability, able to meet floating measurements of large common mode voltage at high frequencies.
CH1: @ 100KHz, 207.7V, output common mode signal amplitude 94.62mV, CMRR > -60dB
1.Floating measurements
2.High voltage isolation measurements
3.Switching power supply design
4.Power converter design
5.Inverter, UPS power supply
6.Welding, electroplating power supply
7.Electronic ballast design
8.Motor drive design
9.Induction heating, induction cooker
10.CRT display design
11.Low-voltage electrical appliances
12.Electronic power and electric drive experiments
