- Hign-concerned Chemical: None
- Brand Name: BMAD
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: MYCUT
- Model Number: TS330
- Voltage: 110-220V
- Cache Capacity: 256MB
- Paper Feed Width: 430mm
- Cutter Pressure: 0-600g
- Cutting Width: 330mm
- Cutting Speed: 800mm/s max
- Driver: Micro-step Motor
- Cutting Length: as requested
- Repeat Cutting: yes
- Size: 690*270*270mm
- Product name: mini plotter de MYCUT
- Model: TS330
- Software: Signmaster, Coreldraw etc.
- Interface: USB/U Disk/Ethenet port
- Cutting: Support Contour Cutting
- Blade: Imported Hardness Alloy Steelblade
- Control panel: LCD Display
- Mainboard: AMR 32 CPU
- Repaetable precision: 0..05mm
- Material: Sheet Metal+aluminum Alloy

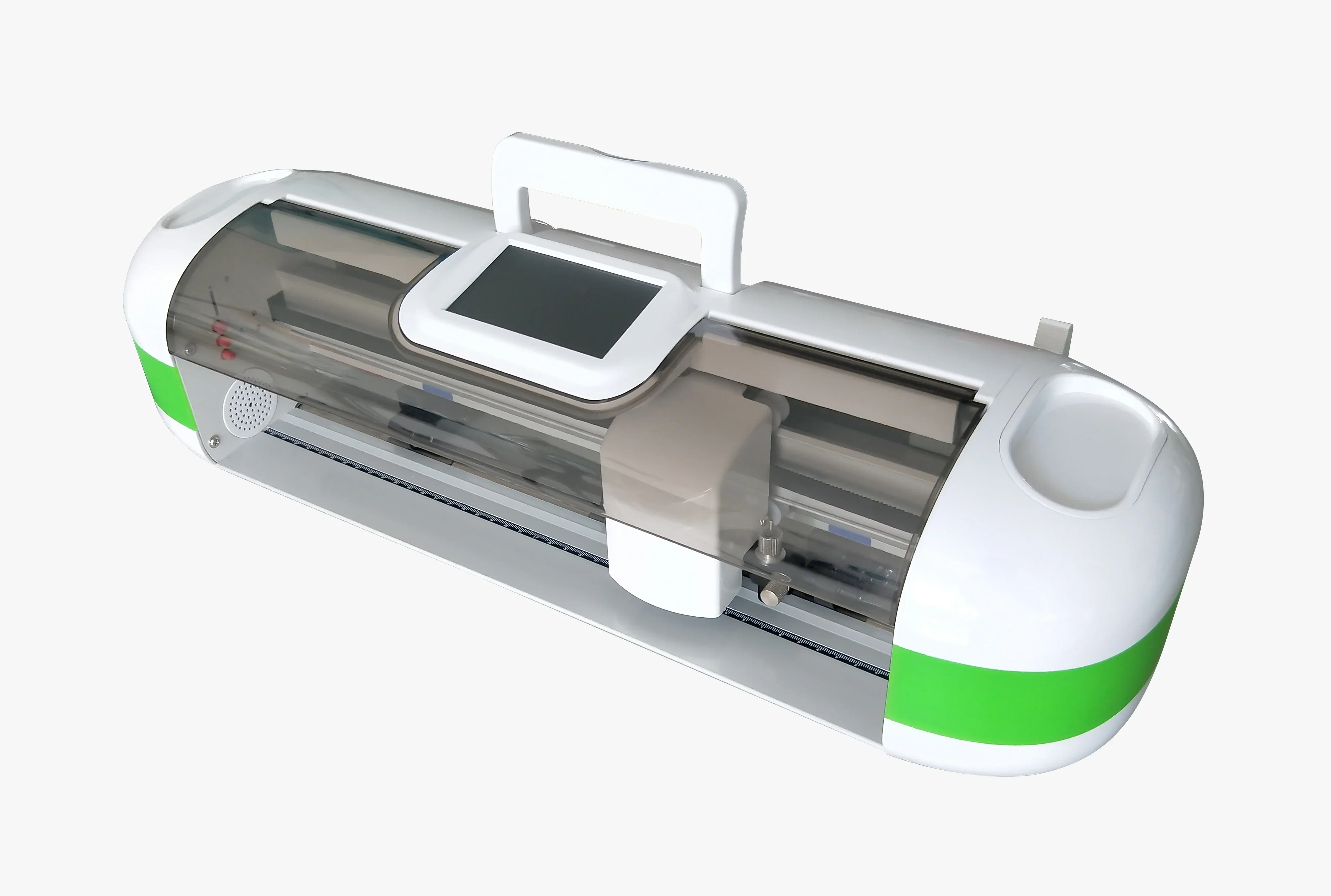

professional desktop auto contour cut mini plotter de MYCUT with touch screen
TS330 Mini cutter plotter Main Features:
2. Camera sensor for accurate mark detection on automatic contour cutting, can cut any base color or reflective materials, while laser sensor can not make;
3. Touch screen provides easy operation;
4. High performance 32-bit processor, ARM Cortex-M3;
5. High accuracy machine structure allows to cut 2mm letters without distortion;
7. Repeat cutting function makes your work more efficiently;
8. MP3 function can listen to music freely;
9. Low noise:whisper quiet motor perfect for home&office use;
|
Model |
TS330 mini cutter plotter |
|
Main Board |
High-performance & intelligent ARM 32 CPU; 256MB memory |
|
Driver |
High speed stepper motor, micro-step driver |
|
Max Paper Feed Width |
430mm
|
|
Max Cutting Width |
330mm |
|
Max Cutting Speed |
800mm/s |
|
Cutting Force |
0-600g |
|
Repeatable Precision |
0.05mm |
|
Plotter Instruction |
DM-PL/HP-GL Automatic Identification |
|

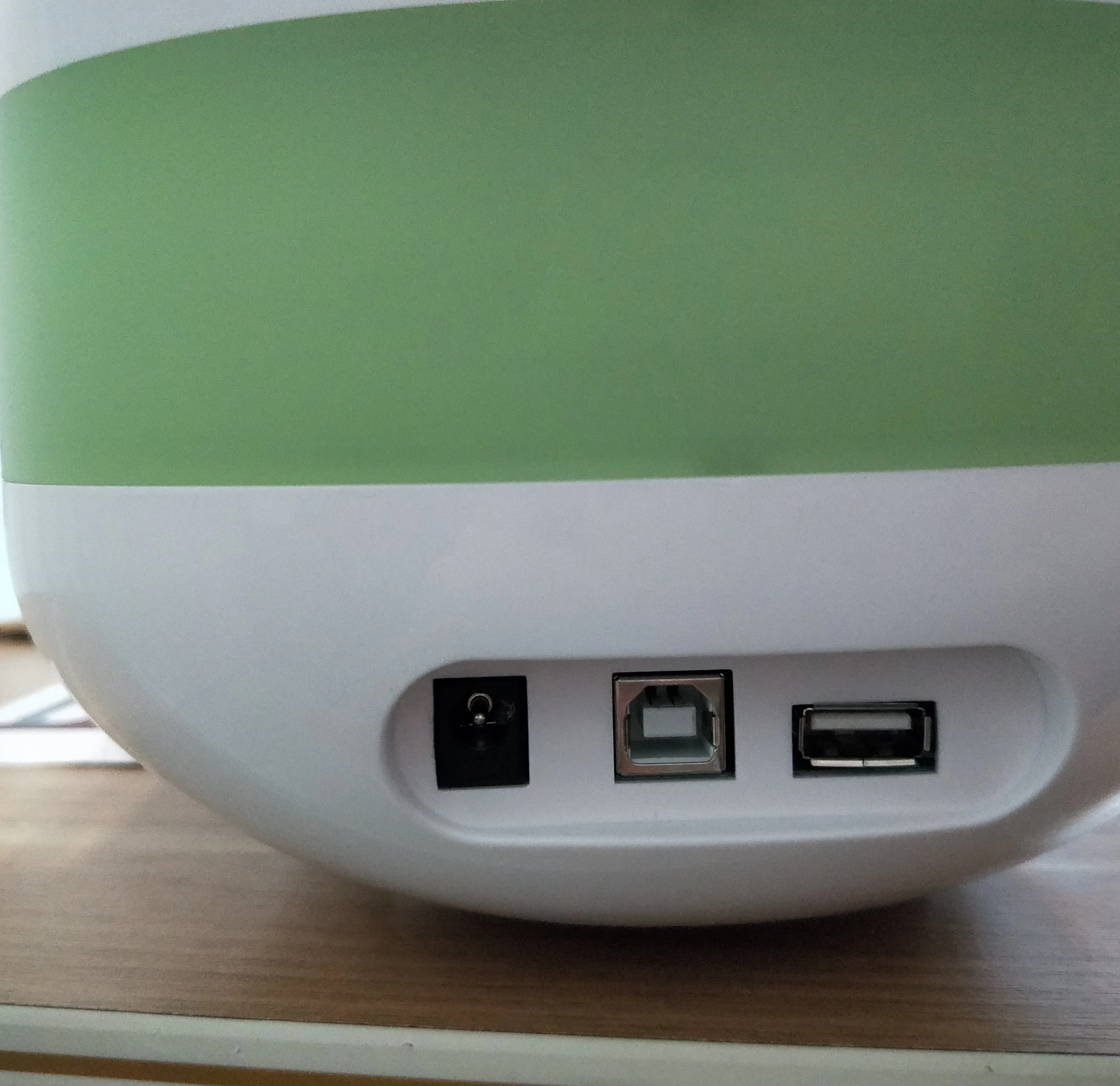

Interfaces |
USB / U-Disc port/ Ethenet port |
|
Power Supply |
AC110V /220V±10%, 50Hz/60Hz |
|
Software |
Signmaster, Coreldraw |
|
Noise at Work |
≤50 DB |
|
External Dimension |
690*270*270mm |
|
Shipping Weight |
8.8KG |
Standard Accessories:
1*cutter,
1*pedestal(CY330 not included),
1* power cable,
1* knife holder,
3* knives,
1* plot pen & holder,
1*USB cable,
1* signmaster plugin,
1* user manual
Standard Packing
With great quality Foam and Carton Packing
Make sure the machine won’t be damaged during shipping
Delivery Info
within 7 days for order less than 100 units.
Within 15 days for order more than 100 units.
1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
